VD-330x28L12Bx196.9D55

Stock Code: CP6565-195CG8

Suitable for use with World Radi-CAL™ 4 piston brake calipers.

Manufacturer	AP Racing
Outside Diameter 'A' (mm)	330.0
Thickness 'B' (mm)	28.0
Mounting PCD 'M' (mm)	196.85
Mounting Hole Number	12
Fixing Type	Bolted
Mounting Hole Diameter	6.43
Eye Diameter 'C'	217.25
Inside Flange Diameter 'D' (mm)	215.45
Mounting Flange Thickness 'H' (mm)	7.01
Maximum Pad Depth (mm)	D55
Number of Vanes	48
Air Gap (mm)	13.5
Weight (Kg)	6.1

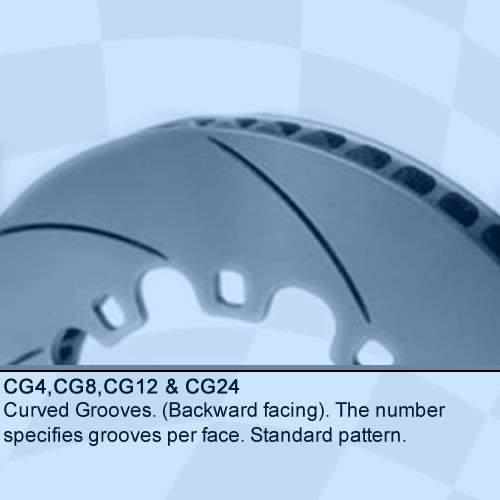

Face Type	CG8
Hand	Left

Name	File Name
CP6565-194-5cg8	CP6565-194-5cg8.pdf
