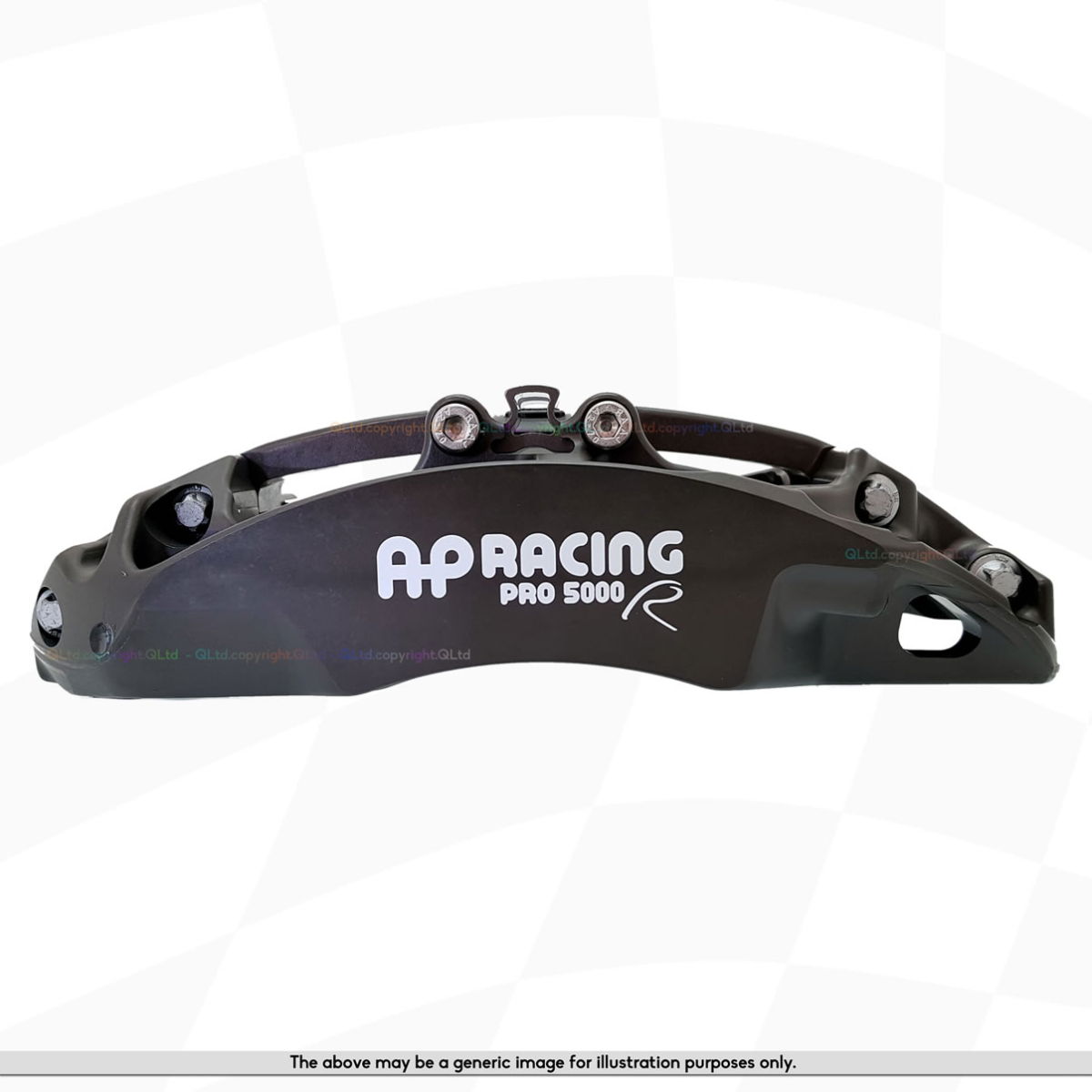

CP9665-side

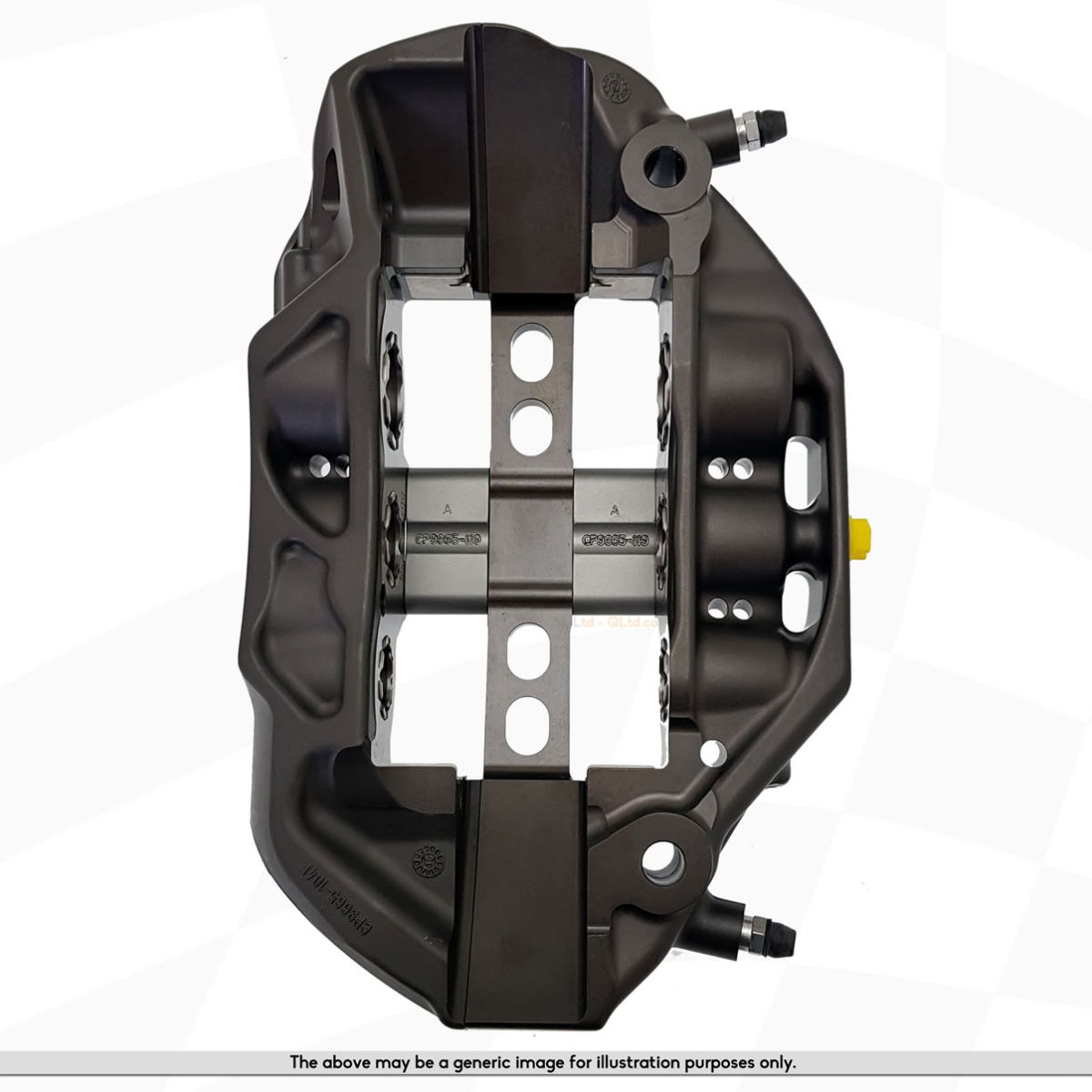

CP9665-bottom

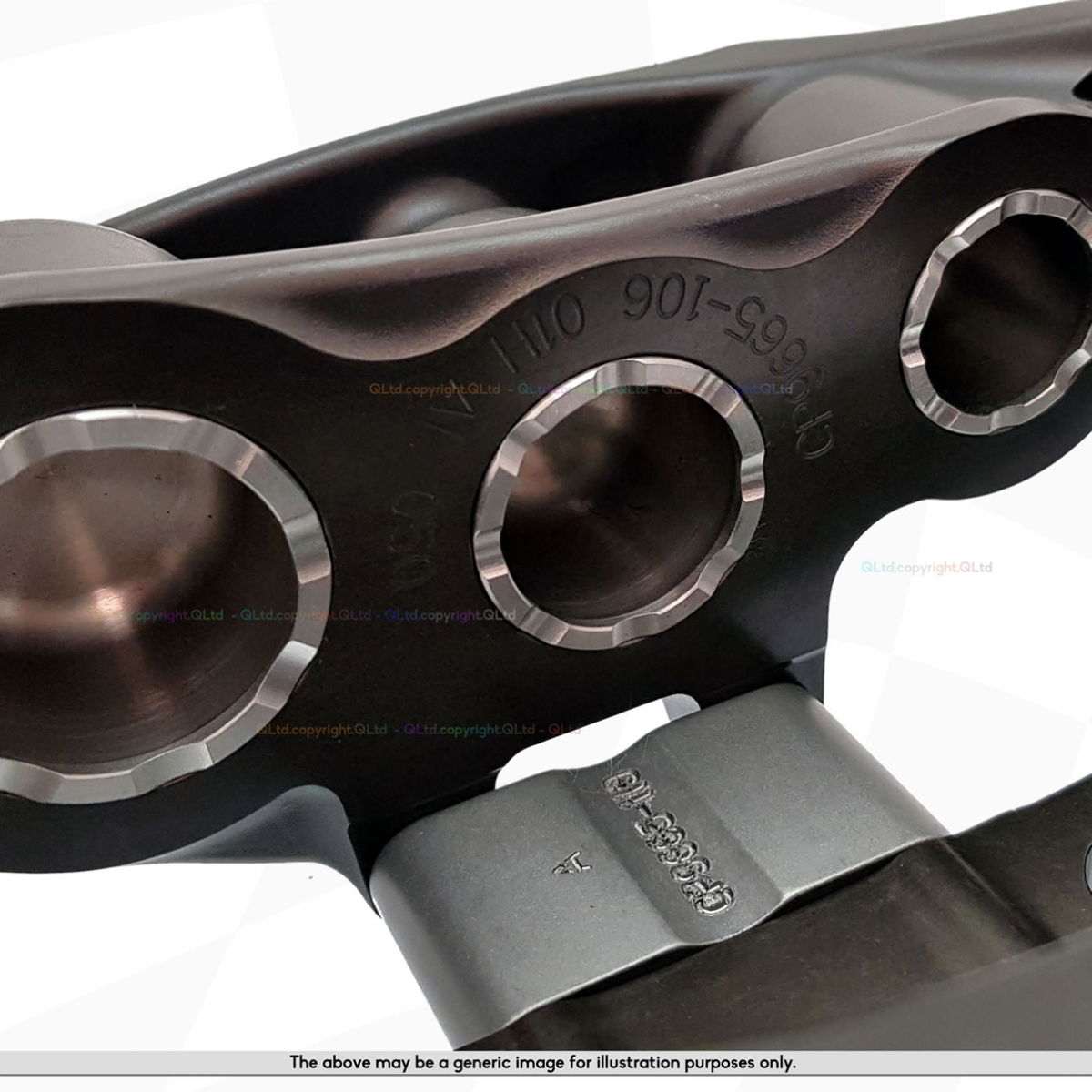

CP9665-pistons

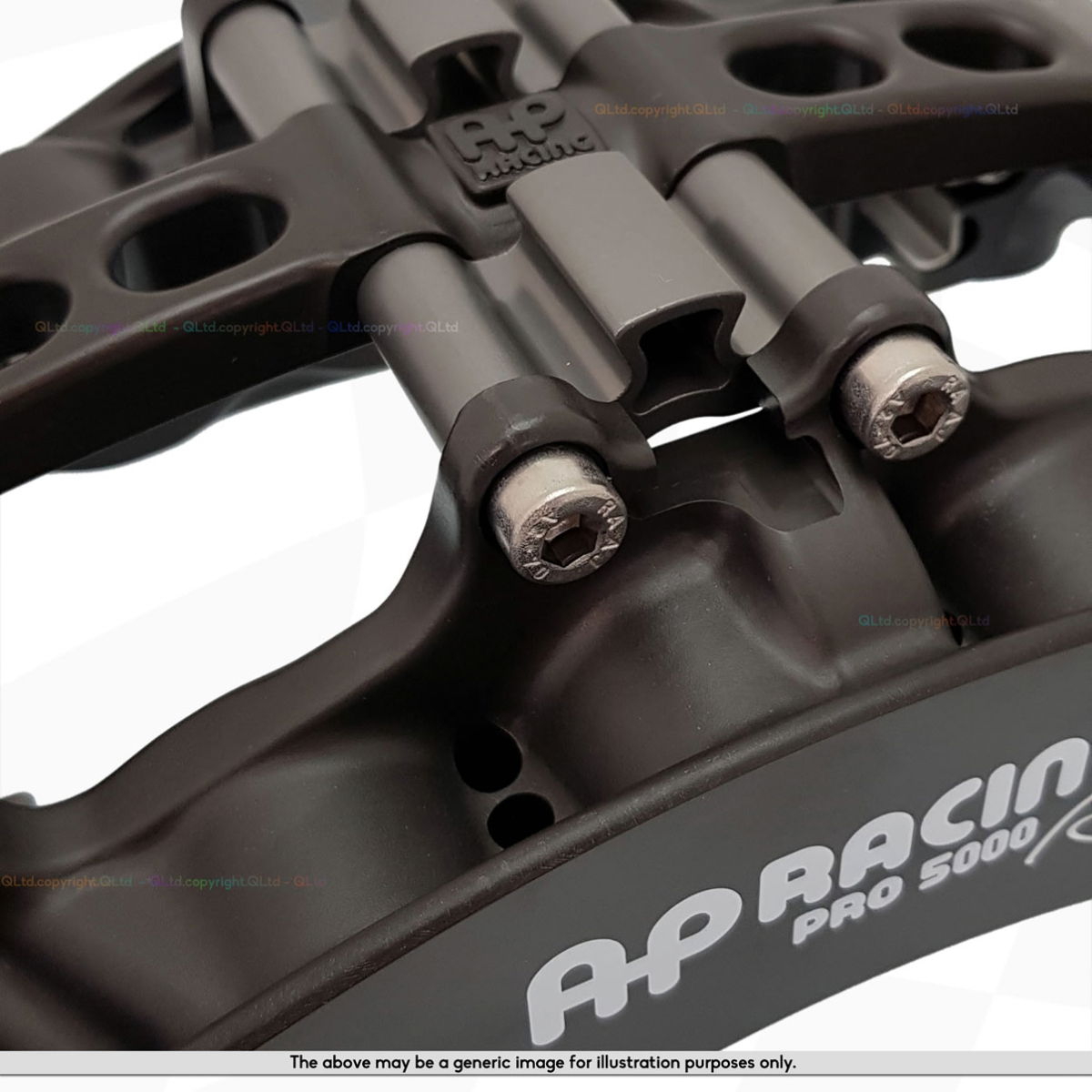

CP9665-pad-retainers
CP9665-side
CP9665-bottom
CP9665-pistons
CP9665-pad-retainers

ACAL(CEJ)LHNx35.6-CP6230

Stock Code: CP9665-3S7L

Minimum Quantity:

inc VAT (%) VAT n/a
From inc VAT (%) VAT n/a Call Free
Discount:
Price inc VAT (%):
VAT n/a:

Notify when back in stock

ACAL(CEJ)LHNx35.6-CP6230

ManufacturerAP Racing
Caliper CategoryPro 5000 R
Caliper FamilyCP9665
Number of Pistons6
Disc Diameter Min (mm)362.0
Disc Diameter Max (mm)390.0
Disc Thickness Min (mm)32.0
Disc Thickness Max (mm)36.0
HandLeft
Leading or TrailingBoth
Piston 1CP9665-114
Piston 1 Diameter (mm)27.0
Piston 2CP9665-115
Piston 2 Diameter (mm)31.8
Piston 3CP9665-116
Piston 3 Diameter (mm)38.1
Piston Area (cm2)50.1
Mounting TypeRadial
Mounting Hole Dia. (mm)12.25
Mounting Centres (mm)210.0
Mounting Offset (mm)42.0
Hydraulic ThreadM10x1.0
PL Dimension (mm)63.5
Weight (Kg)3.1
Anti-Knockback SpringsCP6518-7LBSSL
AP Pad ShapeCP6230D54
Seal KitCP8518-CEJ
Bleed Screw KitCP3880-1
Pad RetainerCP9665-119
Wear PlateCP9665-112/3
Pad Retainer BoltCP3715-117ST
