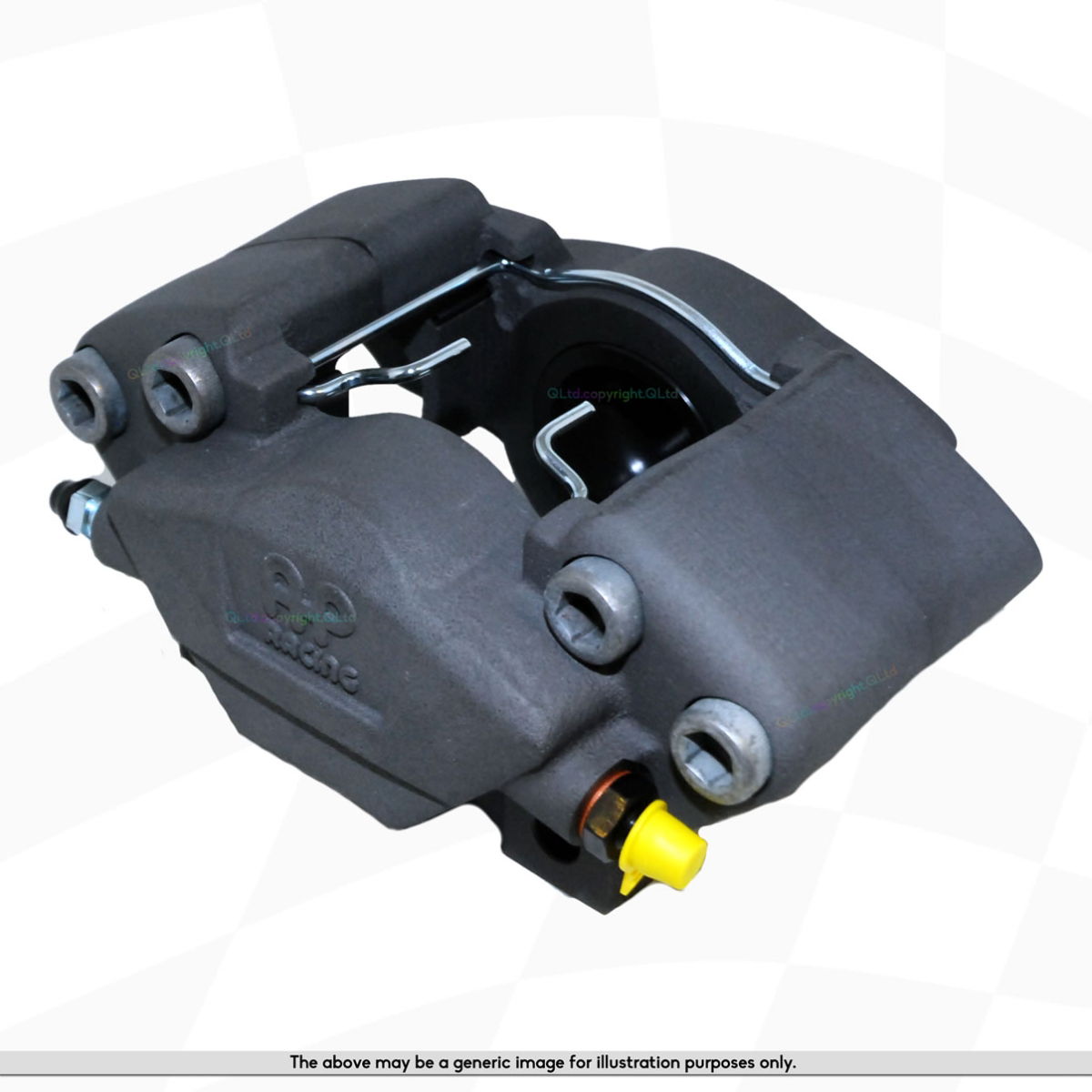

ACAL(N)LHx20,6-CP2372

Stock Code: CP2382-13E4

Specifications
Downloads

Manufacturer	AP Racing
Caliper Category	Historic Race
Caliper Family	CP2382
Number of Pistons	2
Disc Diameter Min (mm)	254.0
Disc Diameter Max (mm)	266.7
Disc Thickness Max (mm)	20.7
Hand	Left
Piston 1	CP2383-52
Piston 1 Diameter (mm)	50.8
Piston Area (cm2)	40.53
Mounting Type	Lug
Mounting Hole Dia. (mm)	11.27
Mounting Centres (mm)	88.9
Mounting Offset (mm)	29.7
Hydraulic Thread	3/8"x24UNF
PL Dimension (mm)	54.1
Weight (Kg)	1.8
Anti-Knockback Springs	CP2667-105
AP Pad Shape	CP2372D52
Seal Kit	CP4518-N
Bleed Screw Kit	CP3720-182
Pad Retainer	CP2372-18

Name	File Name
cp2382_1cd	cp2382_1cd.pdf

Related Products

ACAL(N)RHx20,6-CP2372 CP2382-12E4

KIT SIB 2.00 CP4518-N

SEAL PISTON-2.00 H-TEMP CP4900-160

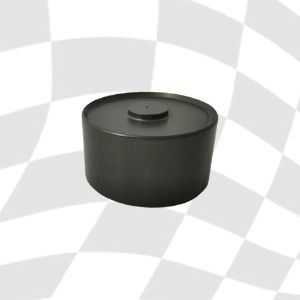

PISTON-2.00x27,4ALU-AKB CP2383-52

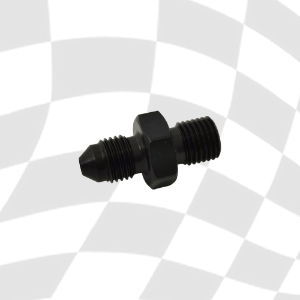

FITTING .375UNF-.375UNF CP2270-16

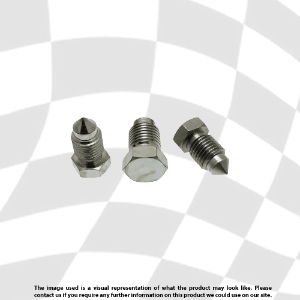

PLUG BLANKING .375UNF CP2696-164

BLEEDSCREW-.375UNF CP3720-182

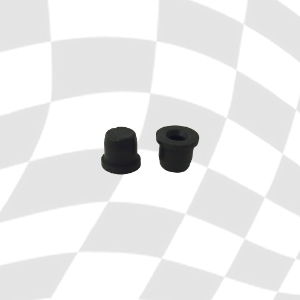

BLEEDSCREW CAP-RUBBER CP2494-177

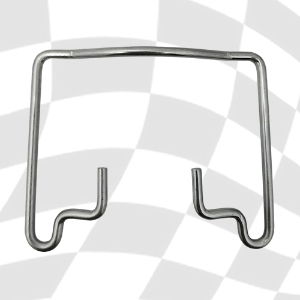

CLIP PAD RETAINING CP2372-18

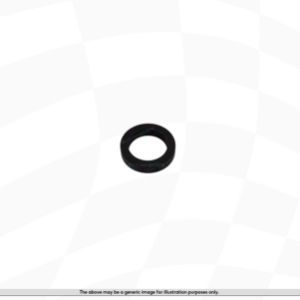

SEAL CROSS FEED CP2383-9

SPRING AKB 4.00LB CP2667-105
