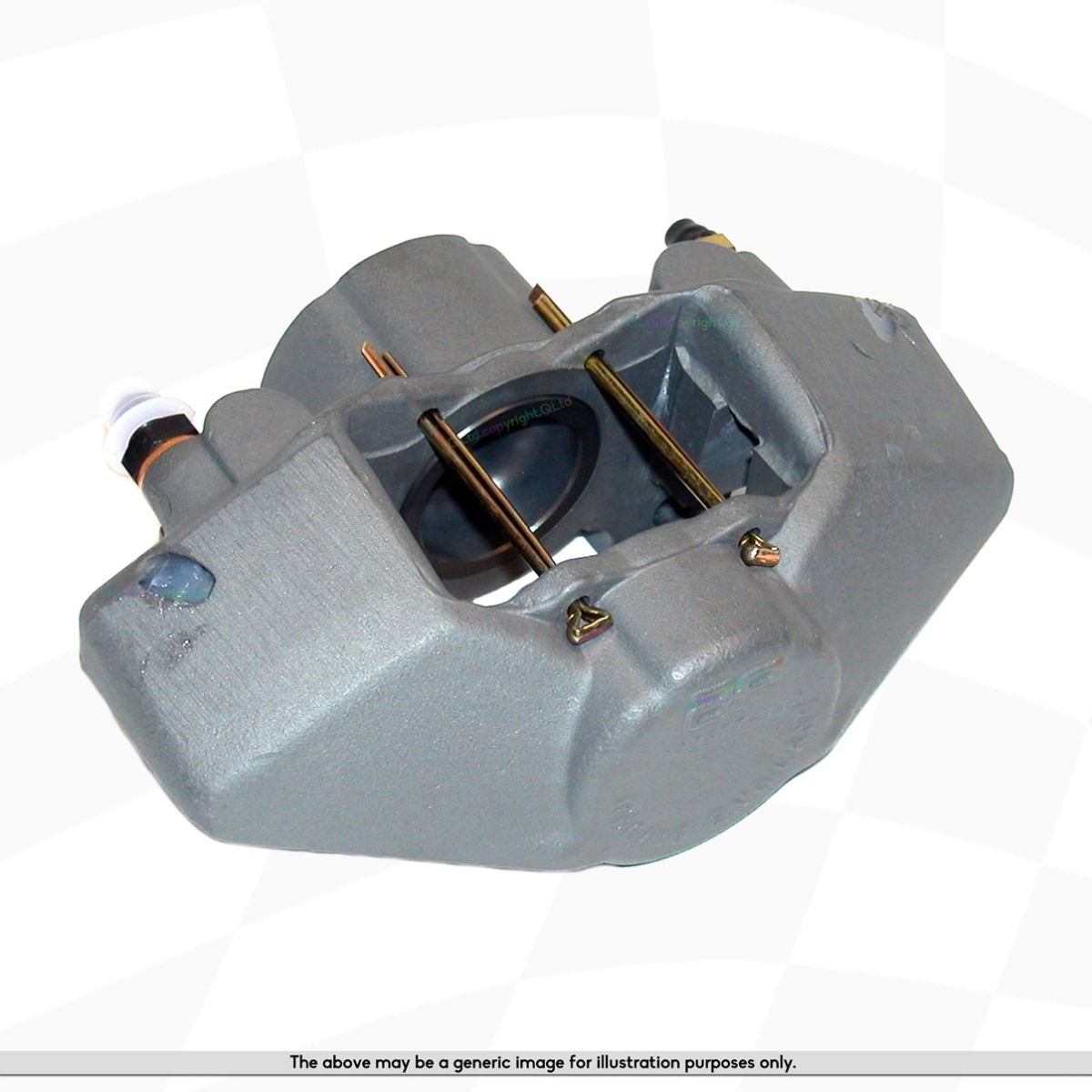

ACAL(K)LHNx09,7-CP2399

Stock Code: CP2576-3E0

Specifications
Downloads

Manufacturer	AP Racing
Caliper Category	2 Piston
Caliper Family	CP2576
Number of Pistons	2
Disc Diameter Max (mm)	267.0
Disc Thickness Max (mm)	9.7
Hand	Both
Leading or Trailing	Both
Piston 1	CP2576-105
Piston 1 Diameter (mm)	41.3
Piston 2	CP2576-105
Piston 2 Diameter (mm)	41.3
Piston Area (cm2)	26.76
Mounting Type	Lug
Mounting Hole Dia. (mm)	9.6
Mounting Centres (mm)	89.0
Mounting Offset (mm)	24.6
Hydraulic Thread	3/8"x24UNF
PL Dimension (mm)	46.9
Weight (Kg)	1.1
AP Pad Shape	CP2399D43
Seal Kit	CP4518-K
Bleed Screw Kit	CP3720-182
Pad Retainer	CP2213-17

Name	File Name
CP2576-1CD	CP2576-1CD.pdf

Related Products

PISTON-1.62x23,4ALU-SIB CP2576-105

KIT SIB 1.62 CP4518-K

CLIP PAD RETAINING R TYP CP2213-17

BLEEDSCREW-.375UNF CP3720-182

Alternatives

ACAL(L)LHNx09,7-CP2399 WITH HANDBRAKE CP2577-3E0HB

ACAL(L)LHNx09,7-CP2399 CP2577-3E0

ACAL(L)RHNx09,7-CP2399 CP2577-14E0

ACAL(J)RHNx09,7-CP2399 CP3176-2E0

ACAL(H)RHNx09,7-CP2399 CP3177-2E0

ACAL(E)RHNx09,7-CP2399 CP3178-2E0
